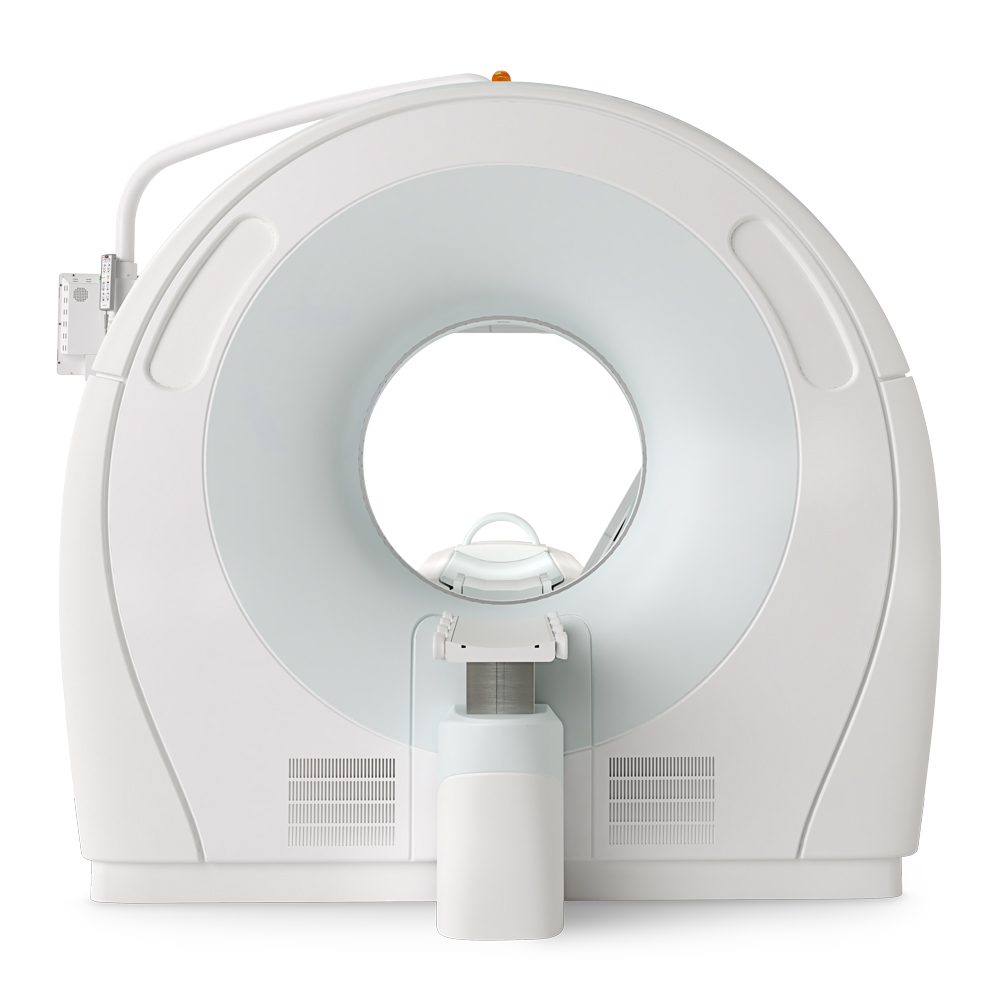

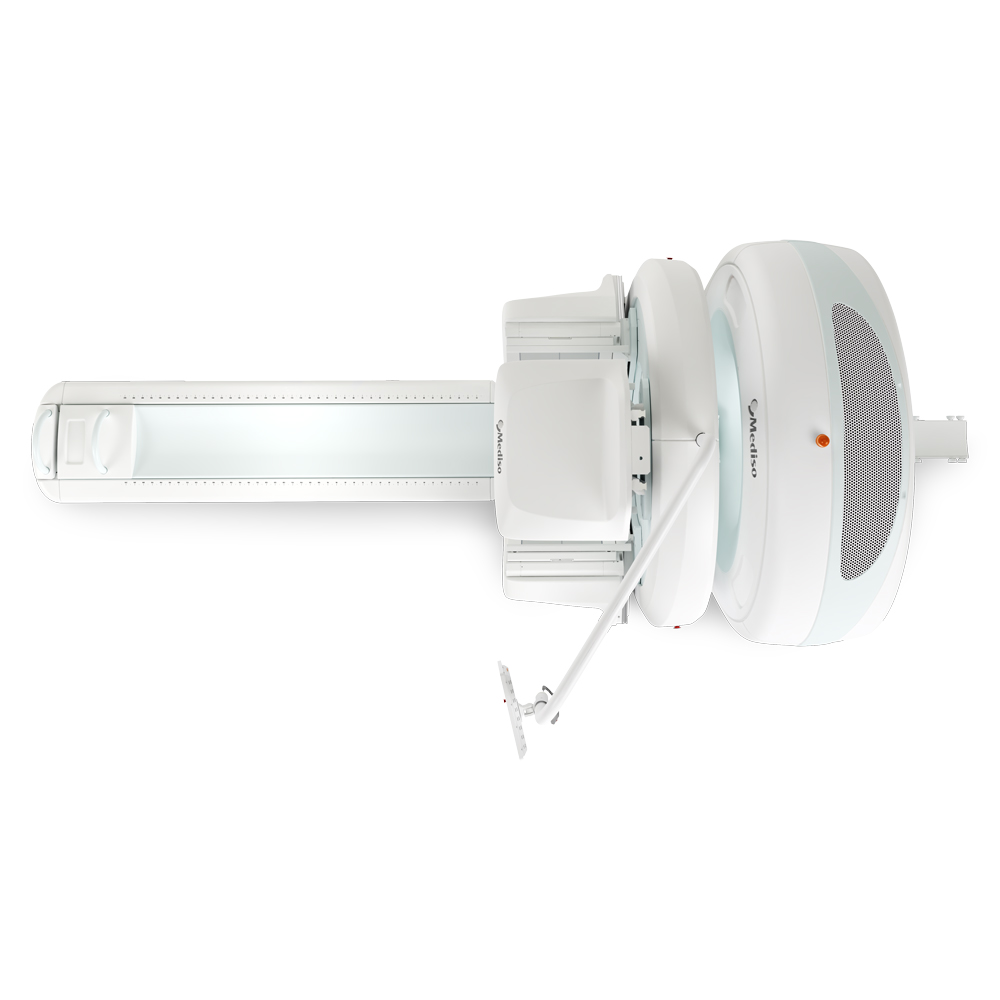

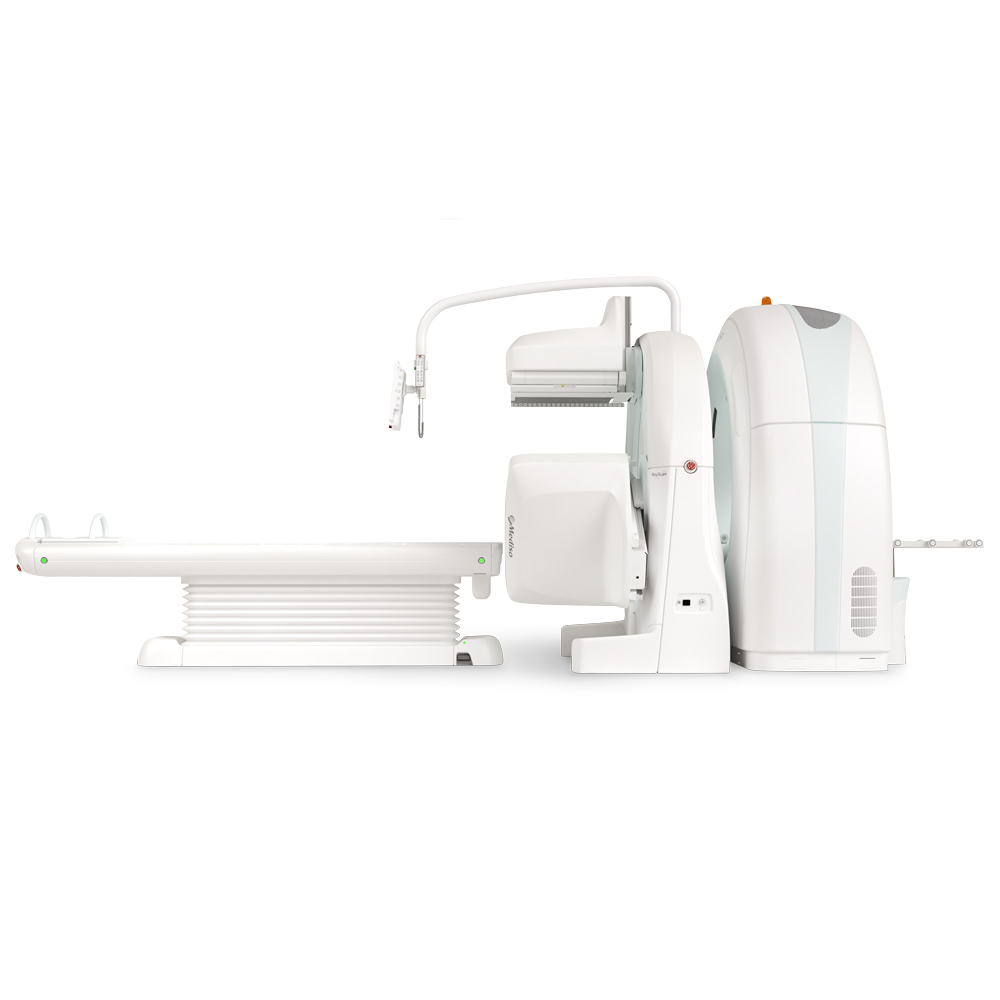

AnyScan® TRIO SPECT/CT

Ultra-fast Triple-NaI-Detector SPECT system for wide range of clinical applications

Raise new standards for nuclear medicine examination with the new design of the triple-detector AnyScan® SPECT. Realize the potential of the sensitivity gain: perform more 3D imaging, while maintaining diagnostic confidence due to excellent image quality. Reduce patient dose and improve patient comfort.  Integrated diagnostic CT makes available to perform stand alone CT procedures and multimodal, quantitative SPECT imaging.

Caractéristiques et Avantages

Ultra-fast SPECT/CT Scanning

  • Significant sensitivity gain due to three large-surface detectors
  • Triple-NaI-Detector surrounding the patient completely in 360°
  • Total-Body SPECT scan in 10-20 minutes, covering 230 cm length
  • 360° myocardial examination under 4 minutes

Transformable™ Gantry

  • Ultra-fast total-body SPECT with 120°detector position for PET like imaging
  • 90° dual-detector mode for cardiac SPECT
  • True planar imaging in 180° detector position
  • Alternating clockwise and counter-clockwise data acquisition with continuous SPECT gantry rotation
  • Automatic image stitching between bed positions

Exploit the Sensitivity Gain

  • Accelerate the imaging by significantly decreased examination time to improve patient comfort and provide high patient throughput
  • Inject less dose to minimize patient’s received dose, reduce isotope cost and examine more patient from the same charge
  • Maximize Image Quality to improve diagnostic accuracy and confidence for better patient care

Diagnostic Dual-Performance CT

  • 16 slice diagnostic CT
  • Standard Low Dose protocols for diagnostic CT applications
  • Ultra-Low Dose CT with sub-mSv effective dose for attenuation correction and localization
  • Iterative Image Reconstruction with Tera-Tomo™ 3D CT
  • High power CT with up to 440 mA in diagnostic mode, 0.5 sec rotation speed, and 0.625 mm resolution, with on-the-fly dose modulation, Metal Artefact Reduction and Motion Artefact Correction

Quantitative Results with Tera-Tomo™ 3D SPECT-Q Reconstruction

  • Tera-Tomo™ reconstruction engine ensures high quantitative accuracy
  • GPU based iterative SPECT/CT reconstruction, incorporating Monte Carlo simulation
  • Quantitative imaging for 99mTc, 123I, 177Lu, 131I and more, including further theranostic nuclides
  • Standard Uptake Value (SUV) calculation option (InterView™ FUSION Processing Software)
  • Available Brain and Cardiac normal databases

Dedicated Features for NM imaging

  • AI-based NM localizer for acquisition planning
  • List Mode acquisition for protocol optimization
  • Real-time time-activity curve (TAC) display for dynamic studies
  • Heart localizer for cardiac perfusion scans keeping projection of the myocardium in the field of view
  • NM-GO foot switch for simultaneous administration of radiotracer and starting acquisition by a single operator
  • Reconstruction with Tera-Tomo™ 3D SPECT engine featuring Monte Carlo based physical modelling of particle-level gamma photon interactions

Applications

Total-Body Bone SPECT/CT

Kidney cancer patient after operation. At right os frontale region there was a bone metastasis, which had under operation. Recurrance bone metastatsis et rith parietal region, both femur, and pelvis region.

  • Collimator: LEHR-HS
  • Radiotracer: 99mTc-MDP
  • Applied dose: 583 MBq
  • Acquisition: 120 view, 3 sec/view, 2 min/FOV

V/Q Pulmonary Scintigraphy SPECT

35-year-old male patient (70 kg, 1.7m). Decreased perfusion on both upper lobe of lungs, but the ventillation is preserved. It can be a sign of pulmonary embolism.

  • Collimator: LEHR-HS
  • Radiotracer:

99mTc-DTPA inhalation

99mTc- MAA perfusion

  • Applied Dose: 168 MBq for perfusion
  • Acquisition: 120 view, 8 min

131I Therapy

131I Therapy of 42-year-old female patient. After 3700 MBq 131I Thyroid carcioma indicated post therapy a whole-body planar and SPECT/CT acquisition performed. As findings thyroid remnant and locoregional lymph node metastases.

  • Collimator: HEGP
  • Radiotracer: 131I NaI
  • Acquisition: 120 view, 16 min
