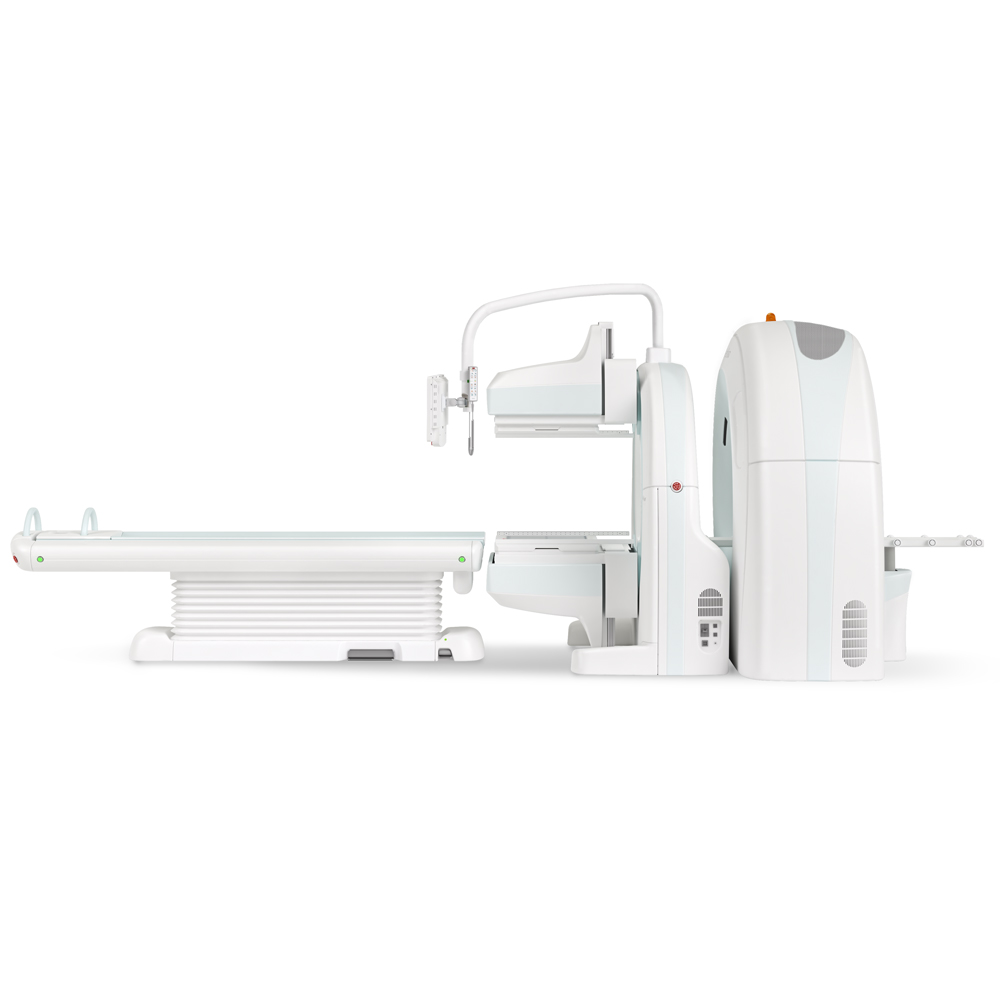

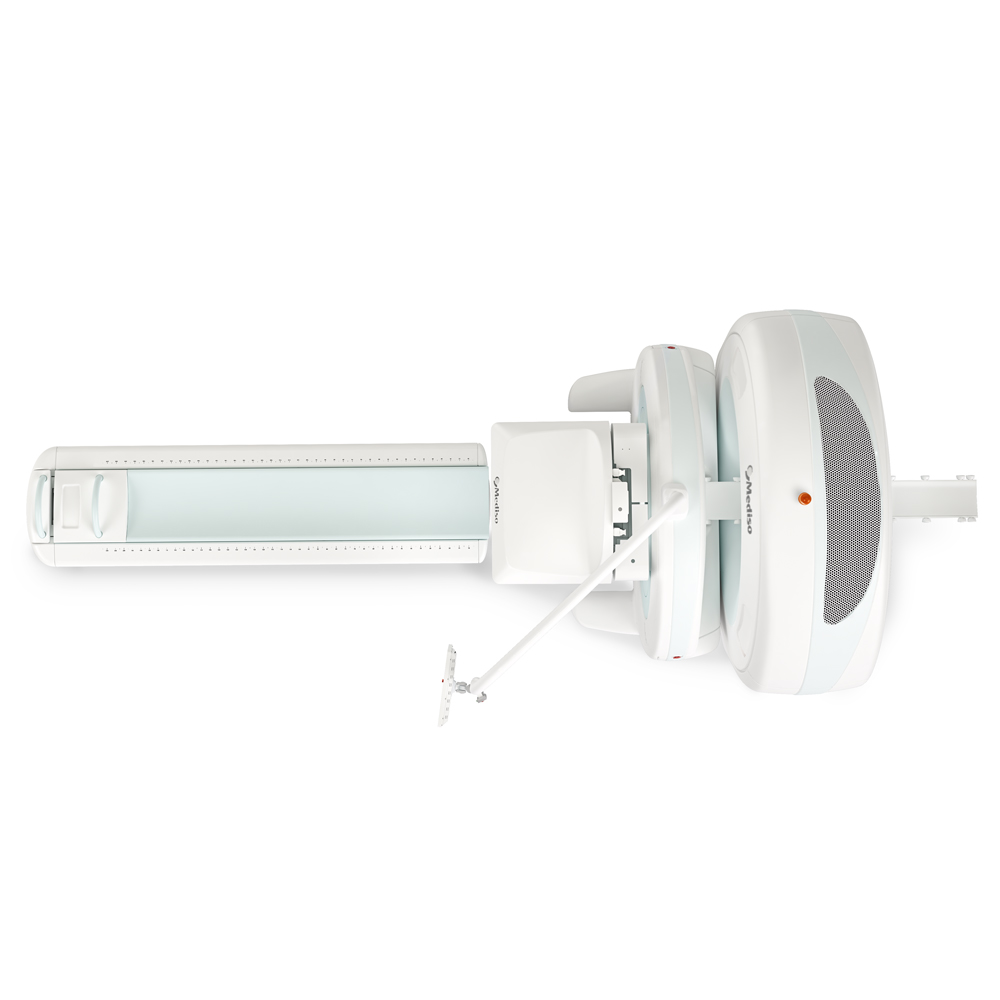

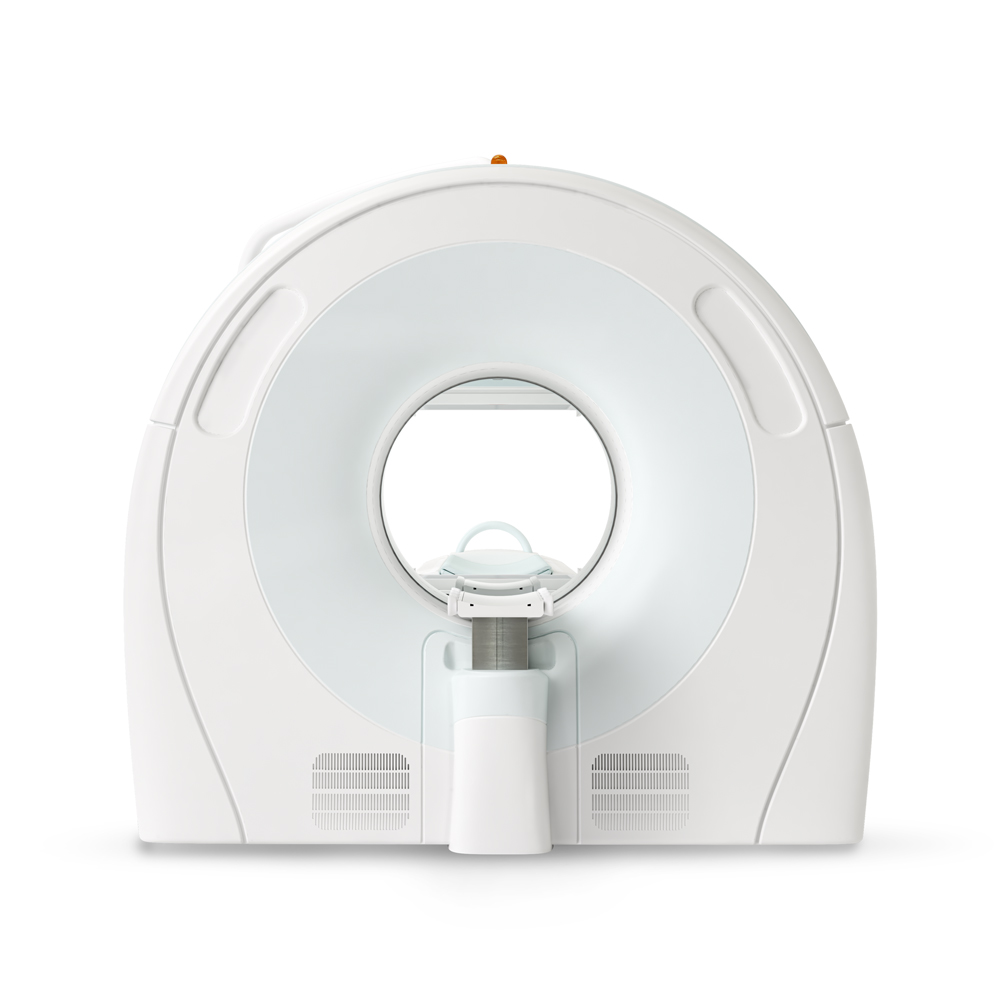

AnyScan® DUO SPECT/CT

All-around daily routine SPECT/CT solution for hybrid and standard Nuclear Medicine imaging

AnyScan® DUO SPECT/CT is your perfect choice as a versatile imaging system in our clinical portfolio. It can be your daily workhorse with the addition of special configurations to your routine studies thanks to its all-around approach. The system becomes a perfect Nuclear Medicine multimodality device with the integrated diagnostic CT. From Whole-Body scans, through all hybrid SPECT/CT examinations, to therapy monitoring, AnyScan® DUO SPECT/CT system covers all routine NM hybrid applications.

Cechy i zalety

Perform all Routine Applications

  • All planar, whole-body and SPECT/CT examinations can be performed
  • Static and dynamic imaging modes for specific diagnostic need
  • Gated planar and gated SPECT/CT studies with integrated R-Wave trigger on the patient table
  • Comprehensive collection of predefined and customizable application specific protocols (oncology, cardiology, neurology, endocrinology, nephrology, pulmonology, etc.)

SPECT/CT Imaging Without Compromise

  • Dual-head acquisition modes with relative angles of 180°, 90° and 78° (102°) detector positions
  • FLEX detector movements for special needs (e.g. wheelchair, hospital bed or gurney, standing position)
  • On-surface detector modes
  • Open design of SPECT/CT that helps children, claustrophobic or anxious patients to tolerate the examination process
  • Ergonomic patient support with carefully designed accessories

Diagnostic Dual-Performance CT

  • 16 slice diagnostic CT with 32-slice reconstruction
  • Standard Low Dose protocols for diagnostic CT applications
  • Ultra-Low Dose CT with sub-mSv effective dose for attenuation correction and localization
  • Iterative Image Reconstruction with Tera-Tomo™ 3D CT
  • High power CT with up to 440 mA in diagnostic mode, 0.5 sec rotation speed, and 0.625 mm resolution, with on-the-fly dose modulation, Metal Artefact Reduction and Motion Artefact Correction

Quantitative Results with Tera-Tomo™ 3D SPECT-Q Reconstruction

  • Mediso developed Tera-Tomo™ engine ensures quantitative results with precise SUV values
  • Best image quality and quantitative results
  • Monte Carlo simulation based iterative SPECT/CT reconstruction
  • SUV calculation for arbitrary radioisotopes. Not only for commonly used tracers like 99mTc, 131I, 123I, 177Lu, but for many more demanding theranostic isotopes
  • Available Normal Databases and possibility to create with easy workflow

Wide Selection of Collimators for Optimal Imaging

  • High Resolution - High Sensitivity collimators: LEHR-HS, LEUHR-HS, MEHR-HS
  • Wide energy range collimators: M-HEGP, M-LEGP
  • Best trade-off between resolution and sensitivity
  • Software guided semi-automatic collimator exchange

Intuitive Acquisition System

  • Our common Nucline™ acquisition console and user interface ensure smooth image acquisition and fast workflow in the everyday routine environment
  • User interface available both on the touchscreen gantry monitor and from the control room
  • Parallel workflow for acquisition and image processing on dual monitors
  • Reconstruction with Tera-Tomo™ 3D SPECT engine featuring Monte Carlo based physical modelling of particle-level gamma photon interactions

Dedicated Features for Faster and Improved NM Workflow

  • AI-based NM localizer creates a planar preview during patient positioning that can be used for acquisition planning without extra time as an alternative to CT localizer
  • List Mode acquisition for retrospective image reconstructions and protocol optimization
  • Real-time time-activity curve (TAC) display for dynamic kidney studies
  • Heart localizer for cardiac perfusion scans keeping projection of the myocardium in the field of view
  • NM-GO foot switch allows simultaneous administration of radiotracer and starting acquisition by a single operator.

Zastosowania

V/Q SPECT

Ventilation and Perfusion (V/Q) SPECT/CT images of a 49-year-old female patient. Pulmonary embolism detected in her right lung.

  • Collimator: LEHR-HS
  • Radiotracer:

99mTc-MAA (perfusion)
99mTc-DTPA (inhalation)

  • Applied dose (perfusion): 214 MBq
  • Acquisition: 64 view × 15 sec (→ 8min / SPECT)

Parathyroid

58-year-old female patient with parathyroid adenoma. Adenoma located on top right lower position front of the thyroid.  

  • Collimator: LEHR-HS
  • Radiotracer:  99mTc-MIBI 
  • Applied dose: 400 MBq
  • Acquisition: 

45 minutes after injection a neck-mediastinal SPECT/CT

Metal Artefact Reduction

Metal Artefact Reduction (MAR) of a 77-year-old patient with right hip metal replacement. 

  • kV: 120
  • mA: 220
  • Pitch: 1.5
  • Rotation: 0.5 sec
  • Dose reduction:

noise-based 3D tube current modulation

Multi-FOV 99mTc-Tectrotyd SPECT/CT

Whole-Body Tectrotyd scan of a 65-year-old patient with neuroendocrine pancreas carcinoma. Multiplex somatostatin receptor expression imaging reveals metastases in liver and bones.

  • Collimator: LEHR-HS
  • Radiotracer: 99mTc-Tectrotyd
  • Applied dose (perfusion): 400 MBq
  • Acquisition: 

64 view × 15 sec, 2 FOV (→ 16 min / FOV) alternate SPECT direction

Diagnostic CT imaging

Contrast enhanced diagnostics abdomen CT examination of a patient with a giant tumor.

  • kV:120
  • mA: 220
  • Pitch: 1.5
  • Rotation: 0.667 sec
  • Dose reduction:

noise-based 3D tube current modulation
